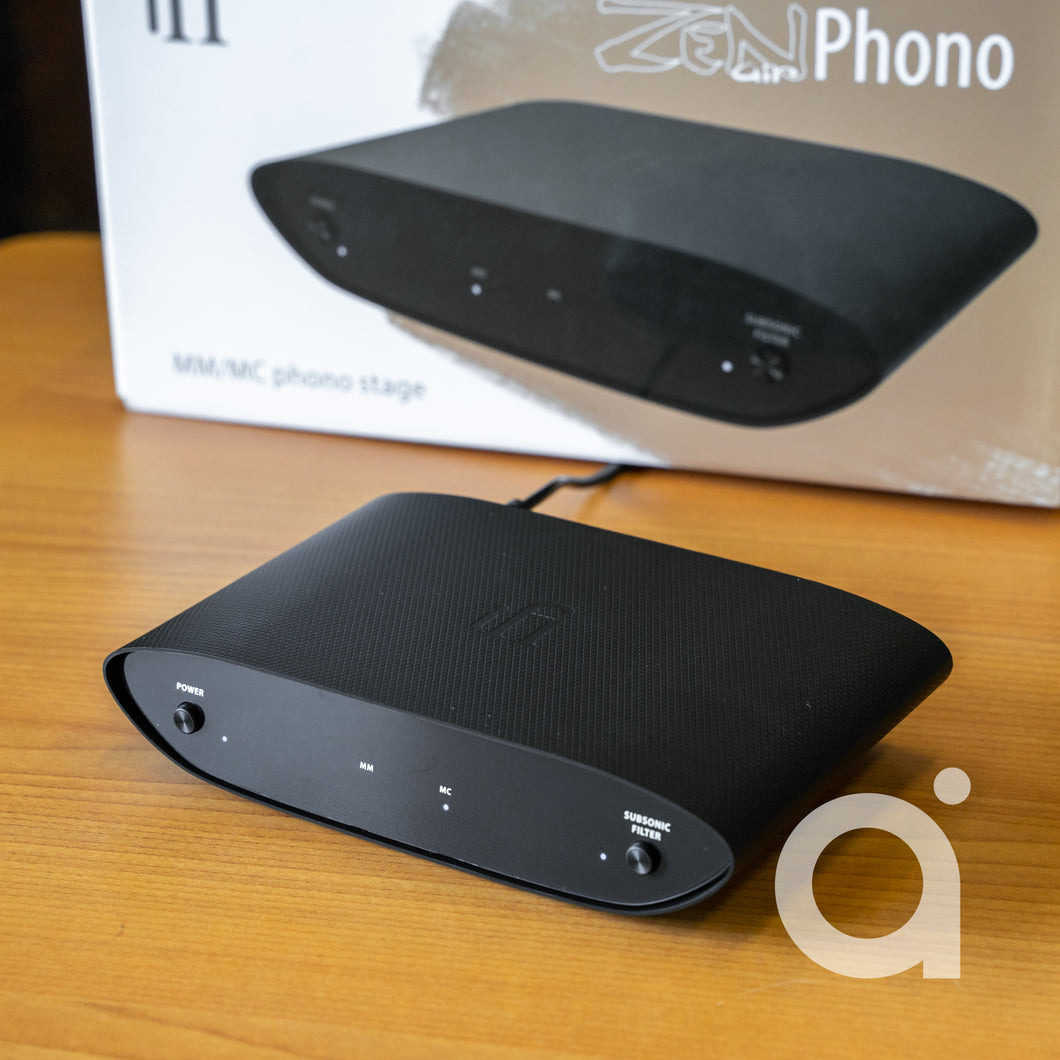

Enjoy a purer listening experience with the ZEN Air Phono, our super affordable phono stage.

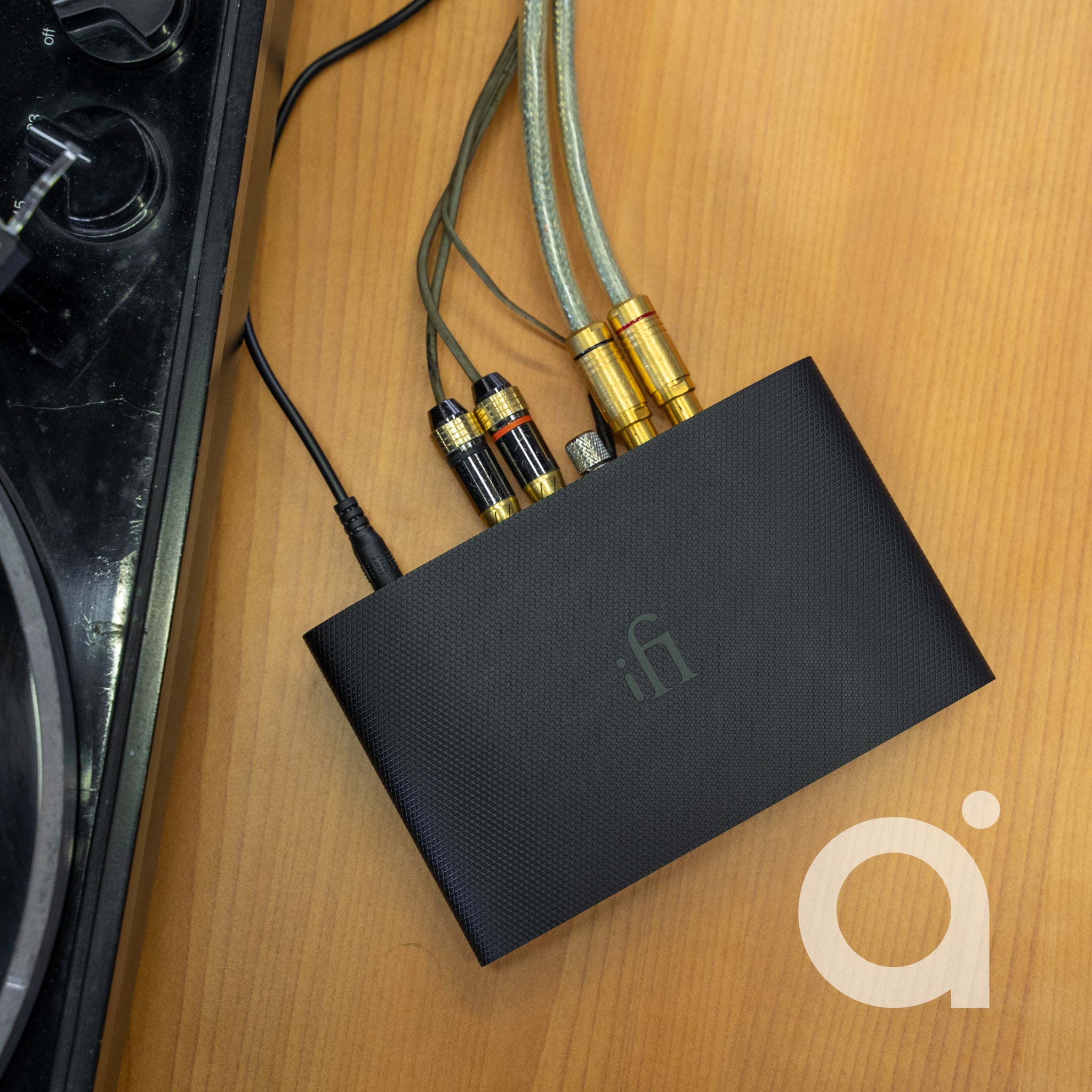

A phono stage, also called a phono pre-amp, provides the connection between the record cartridge/pickup (stylus) and the amplifier.
Turntable cartridges output a very small signal. This signal needs amplifying up to several hundred times the original size before it is loud enough for your amplifier. A phono stage increases the signal level from millivolts to volts.
When vinyl was the standard for audio recording, the phono stage was built-in to receivers and amps, allowing direct connection of a turntable. These days most receivers and amps do not contain a phono stage so a separate unit is needed.
It is a necessity for any turntable without a phono stage already built in. It will also upgrade a basic built-in phono stage in a turntable or amplifier system.

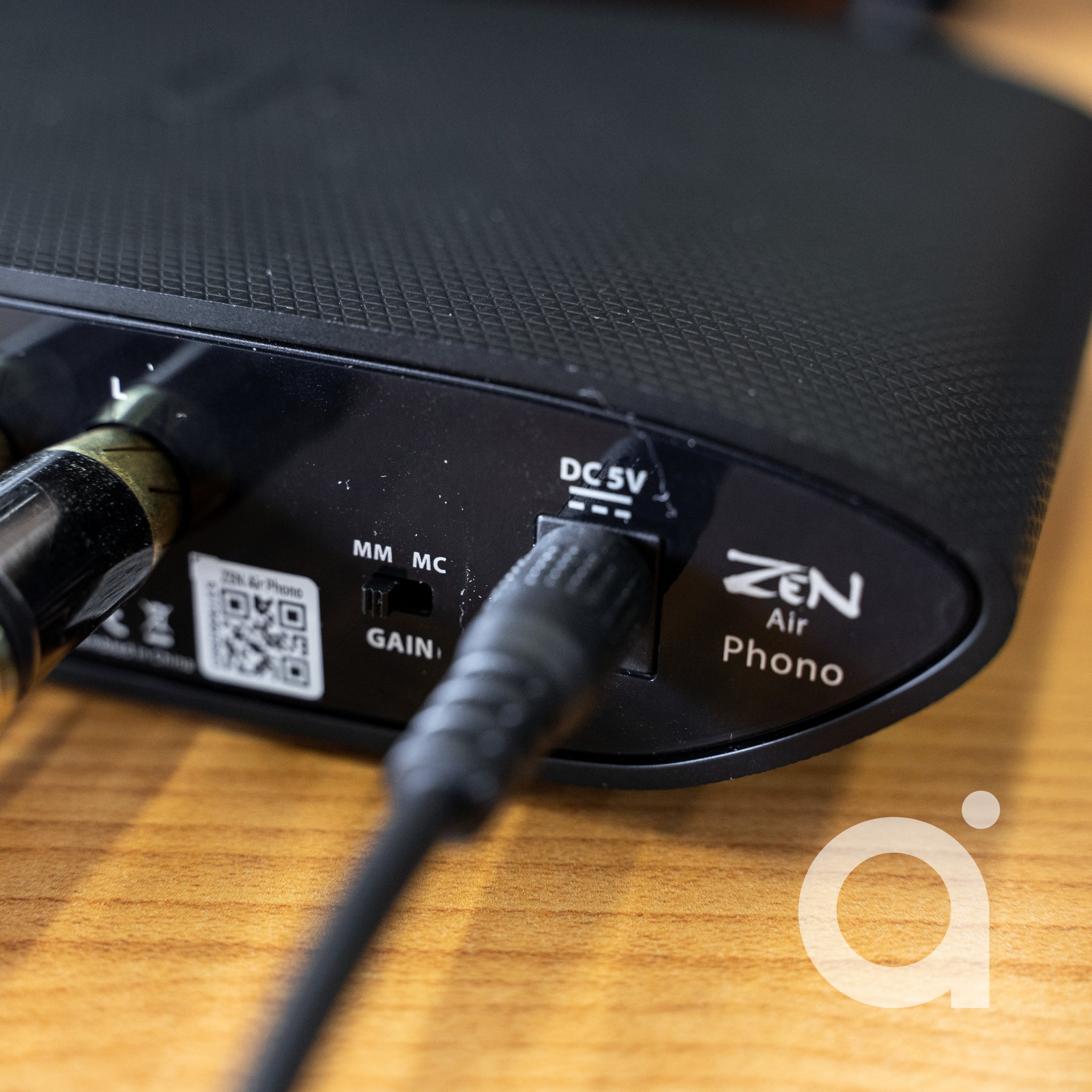

| Power supply requirement | DC 5V/1.0A (centre +ve) | |
| Frequency Response | 20Hz -20kHz (±0.15dB) | |
| Channel Separation | > 75dB (1kHz all modes) | |
| Max Output Voltage | RMS6.5V RMS 600Ω(<1% THD & N) | |
| Gain | MM 40dB / MC 64dB | |
| Input Impedance | MM 47k / MC 1k | |
| Output Impedance | 100Ω | |
| SNR | MM (40dB ±1dB) MC (64dB ±1dB) |
86dB (A-weighted) re 1V 82dB (A-weighted) re 1V |
| Ein (equivalent input noise) |
MC MM |
0.6nV | /Hz (unweighted) 6.5nV | /Hz (unweighted) -151dBV (A-weighted) -130dBV (A-weighted) |
| Total Harmonic Distortion | MC MM |
<-80dB / 0.01% re 1V <-90dB / 0.005% re 1V |
| Power Consumption | <1.8W | |
| Dimensions | 158 x 117 x 35 mm 6.2" x 4.6" x 1.4" |
|
| Net weight | 320g 0.71 lbs |
