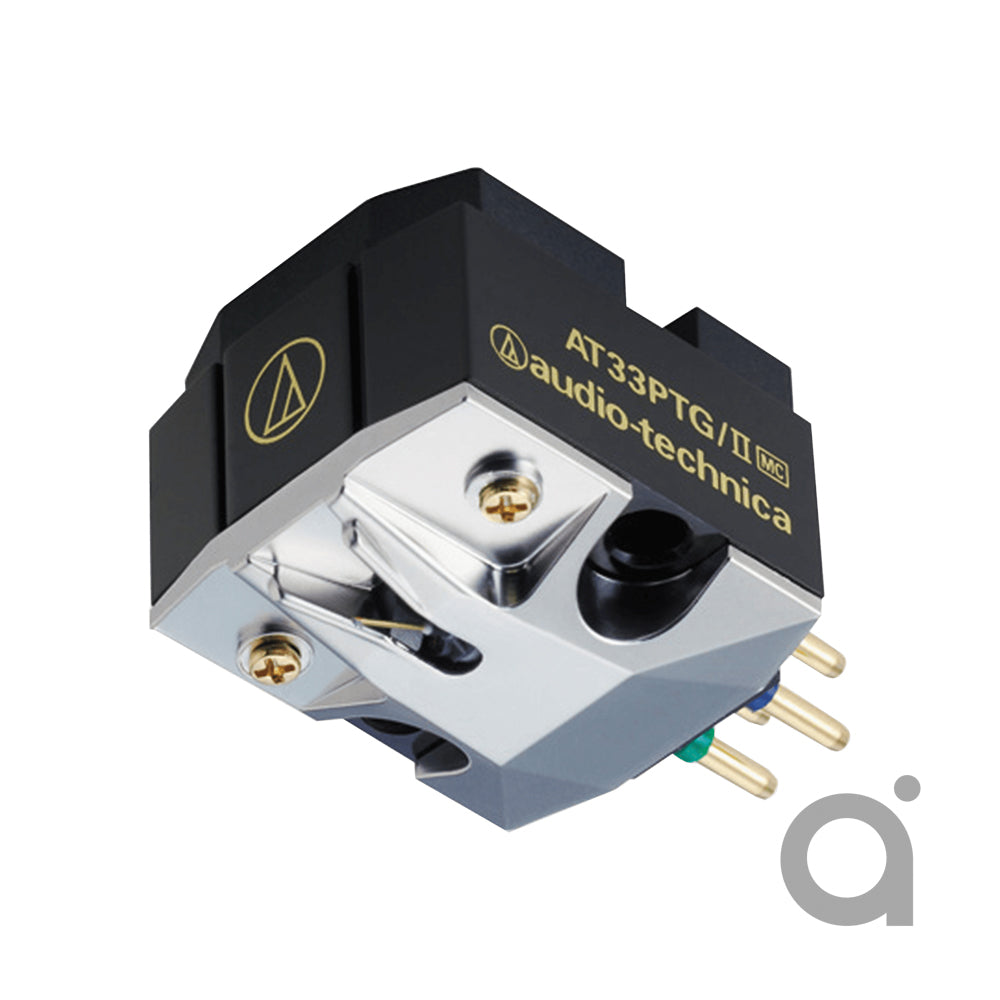

AT33PTG/II Moving Coil Cartridge. Advanced nude tapered boron and weight reduction, Coil impedance refined from 17W to 10W. High performance and long-life Microlinear stylus.
Advanced nude tapered boron and weight reductionThis model succeeds in thinning down and shortening the cantilever, compared to the AT33PTG. The coil impedance is also refined from 17Ω to 10Ω. We realized significant weight reduction of the vibration system and successfully improved the basic performance and sound quality of the cartridge.
High performance and long-life Microlinear stylus
Microlinear (ML) is a specially polished line contact stylus. This has better high range performance than the conical or elliptical stylus due to its small curvature radius and realizes low distortion and expanding high range reproduction even when playing at the inner circumference of records. And the constancy of the line contact shape is one of its main features with an average product lifetime of around 1000 hours.
“Outstanding Magnetic properties”
Neodymium magnet with dramatically enhanced magnetic energy and permendur yoke with high saturation flux density and outstanding magnetic properties.
“Enables purer transmission”
The PCOCC coil enables purer transmission because it is not subject to grain boundaries in the direction of transmission.
“Limits unnecessary vibration”
The VC mould that affixes the coil is made with hard synthetic resin containing potassium titanate to make it strong and rigid.
| Frequency Response | 15 - 50,000Hz |
| Channel Separation | 30dB (1kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction | Nude Square Shank |
| Recommended Load Impedance | Min 100Ω |
| Coil Impedance | 10Ω (1kHz) |
| DC Resistance | 10Ω |
| Coil Inductance | 22µH (1kHz) |
| Output Voltage | 0.3mV (1kHz and 5cm/sec.) |
| Output Channel Balance | 1dB (1kHz) |
| Stylus Shape | Microlinear |
| Cantilever | Gold-plated solid boron |
| Static Compliance | 40×10-6cm/dyne |
| Dynamic Compliance | 10×10-6cm/dyne (100Hz) |
| Mounting | 1/2" Centers |
| Dimensions | H16×W16.6×D26.5mm |
| Accessories Included | 1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101) |
| Body Material | Aluminium/Synthetic Resin |
| Stylus Curvature Radius | Micro linear |
| Terminal Pins | Brass |
| Type | Dual Moving Coil |
| Weight | 6.9g |
