Accuphase c-200S Stereo Control Center

RM6,000.00 MYR
RM6,000.00 MYR
Sold out

Please contact us if you are interested in this product at:

Joseph: +60102688052

Accuphase Laboratory, Inc. (known initially as Kensonic Laboratory, Inc.) is a Japanese, Yokohama-based high-end audio equipment manufacturer founded by former Kenwood engineer Jiro Kasuga in late 1972.

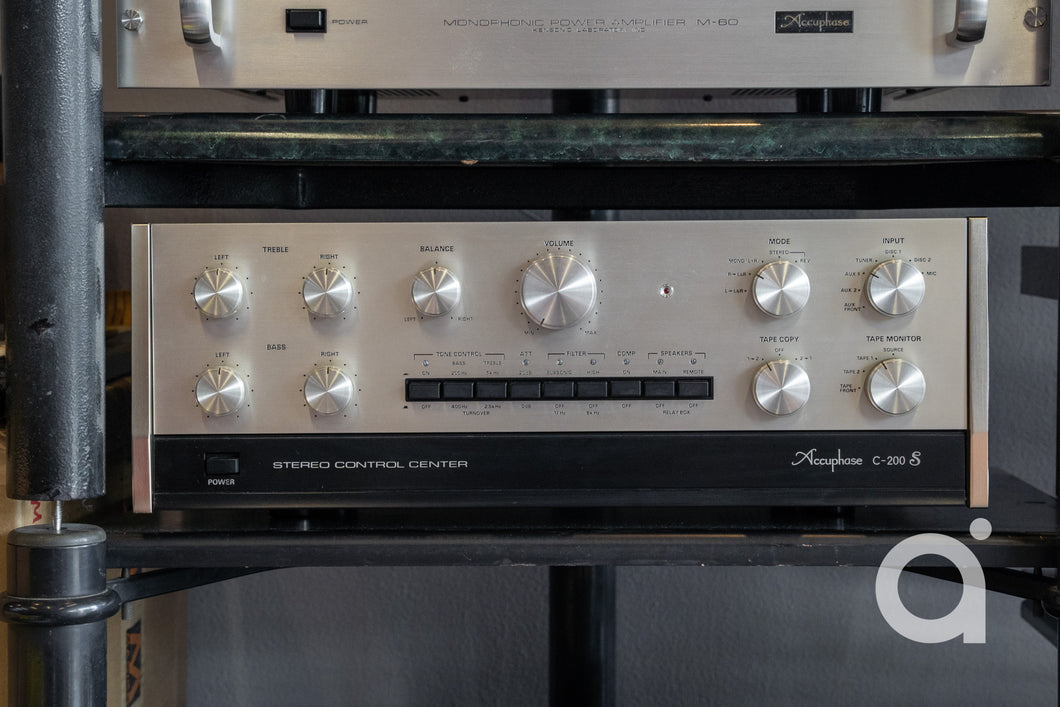

The Accuphase c-200S Stereo Control Center is a vintage pre-amp made to pair with the Accuphase P-300S Stereo Power Amplifier or Accuphase Monophonic Power Amplifier M-60 that we have pre-owned here in Audio Image ourselves.

Type Stereo Control Center
Frequency Response High level input : 20 Hz to 20000 Hz, + 0 -0.2 dB
DISC input : 20 Hz to 20000 Hz, ± 0.2 dB
Harmonic Distortion Factor 0.01% (20 Hz to 20 kHz at rated output)
Input Sensitivity / Input Impedance DISC1 : 2 ~ 6mV/30k Ω, 47k Ω, 100k Ω
DISC2 : 2 ~ 6mV/47k Ω
MIC : 2mV/47k Ω
Tuner, AUX1, 2, Front, Tape Play1, 2, Front : 200mV/47k Ω
Rated Output / Output Impedance Main Output : 2.0V/200 Ω (maximum volume at rated input)
Tape Rec Output1, 2, Front : 200mV/200 Ω
Maximum Power Level 10 v or more (0.01% distortion rate, 20 Hz to 20 kHz)
Disk Max Input 400 mv ~ 1.2 vrms (1 khz, 0.01% distortion)
* 400 mv : DISC level control maximum (equalizer gain 40 db)
* 1.2 v : DISC level control minimum (equalizer gain 30 dB)
Minimum Load Impedance Output : 5.0k Ω
Tape Rec : 10.0k Ω
Gain From the Tuner, AUX and Tape Play inputs
Tape Rec Output:
Output:
Headphone:		 0dB
20dB
16dB
From DISC1, 2 and MIC input
Tape Rec Output:
Output:
Headphone:		 40dB
60dB
56dB
DISCS 1 and 2 have level adjustment, adjustable to -10dB
S/N / Input Conversion Noise
(rated input, IFF-A, input short)		 High level input : 106dB/-120dBV
DISC, MIC : 81dB/-135dBV
Volume Adjustment Interlock Error within 1 dB
Tone Controls
Low : Change Point 400 Hz :
200Hz:		 ± 10 dB (100 Hz)
± 10 dB at 50 Hz
High : Change point 2.5 kHz :
5kHz:		 ± 10 dB at 10 kHz
± 10 dB at 20 kHz
Each 2 dB step
DISC low enhancement (volume compensation circuit) 0 dB, + 0.5 dB, + 1 dB (100 Hz) from the RIAA reference characteristic
Attenuator -20dB
Compensator (volume control -30dB) 50 Hz, 250 Hz : + 9 dB
Filters Subsonic Filter : 17 Hz, 18dB/oct
High Filter : 8 kHz, 12dB/oct
Headphones Output impedance : 0.3 Ω
Output (8 Ω load) : 0.8W (1 kHz, 0.03% distortion)
Semiconductors used Transistors
FET : 8
Diode : 28
Power Supply 100 VAC / 117 V / 220 V / 240 V, 50Hz/60Hz
Power Consumption 60W
External Dimensions (including legs) 445 mm wide x 160 mm high x 355 mm deep
Weight 14kg
